Waterproof SSL

LED照明コネクタ

製品の通し番号
Waterproof SSL






No. Specifications Standard Value

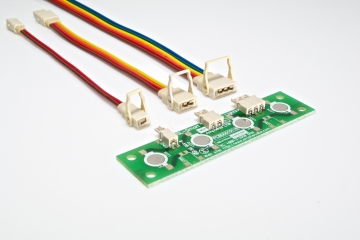

Identifications SSL 1.1 DC Connector (PCB Connector & Cable)
Description PCB To PCB
PCB To Wire
Wire To Wire

Current Rating Data 3A Per Pin
2, 4, 6 Pin
Material Connector : Copper Alloy, Tin Over Nickel
Housing : LCP, UL 94V-0 Rated
Hood : Nylon (PA66), UL 94V-0 Rated
SR : PP, UL 94V-0 Rated
UL Recognized Wire & Flat Cable Available
Temperature Range -40℃~ + 100℃
Breakdown Voltage 1200V DC
Contact Resistance ≦20mΩ
Insulation Resistance ≦100mΩ at DC 250V
Durability 100 Cycles
