Circular Push Pull > HR10 SYSTEM

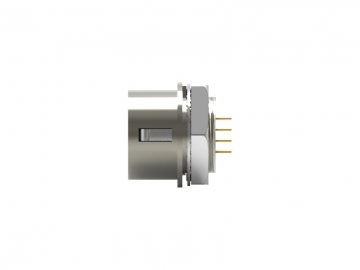

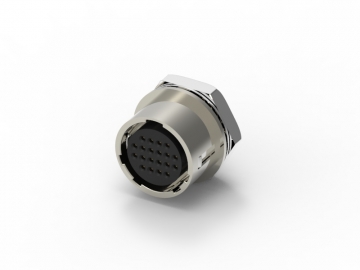

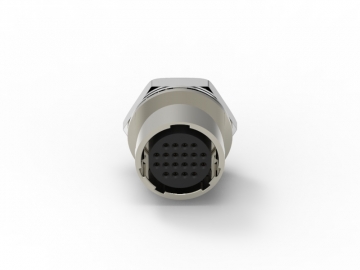

	HR10 Female 20Pin Panel
	產品編號 HR10 System High performance, miniature circular connectors 1. A simple, yet highly reliable design for compact, high density applications 2. Extremely easy mating/unmating operations * IP67 products are also available as an option.



Specifications Connector Type Plug, Receptacle, Jack, Contact, Others Rated Current 2 A Rated Voltage (AC) AC 100, 150 V Rated Voltage (DC) DC 140, 200 V Number of Positions 1, 4, 5, 6, 10, 11, 12, 20 Remarks on Number of Positions 11: 1 Coaxial contact + 10Pin*2A Operating Temperature (Max.) 85 ℃ Operating Temperature (Min.) -25 ℃ Water Resistance IP 67 Withstanding voltage 250, 300, 500 V Max. Locking Style Screw, Push-pull Wire Termination Method Soldering, Crimping Cable Outer Diameter 5, 7, 9 mm Mating/Unmating Cycles 1000 Finger Protection No Metal Shields No, Yes Mounting Style THT Contact Plating Gold, Silver Salt Spray Test Duration (Corrosion Resistance) 48 h Shell Material Metal Finish on Shell Nickel, Chrome
