Circular Push Pull > HR10 SYSTEM

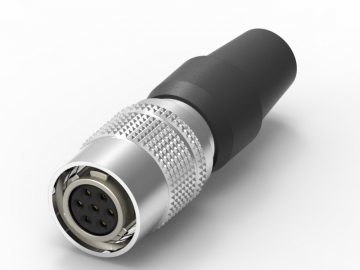

HR10 Female 7Pin Panel

產品編號
HR10 System
High performance, miniature circular connectors

1. A simple, yet highly reliable design for compact, high density applications
2. Extremely easy mating/unmating operations

* IP67 products are also available as an option.






Specifications

Connector Type Plug, Receptacle, Jack, Contact, Others
Rated Current 2 A
Rated Voltage (AC) AC 100, 150 V
Rated Voltage (DC) DC 140, 200 V
Number of Positions 1, 4, 5, 6, 10, 11, 12, 20
Remarks on Number of Positions 11: 1 Coaxial contact + 10Pin*2A
Operating Temperature (Max.) 85 ℃
Operating Temperature (Min.) -25 ℃
Water Resistance IP 67
Withstanding voltage 250, 300, 500 V Max.
Locking Style Screw, Push-pull
Wire Termination Method Soldering, Crimping
Cable Outer Diameter 5, 7, 9 mm
Mating/Unmating Cycles 1000
Finger Protection No
Metal Shields No, Yes
Mounting Style THT
Contact Plating Gold, Silver
Salt Spray Test Duration (Corrosion Resistance) 48 h
Shell Material Metal
Finish on Shell Nickel, Chrome
