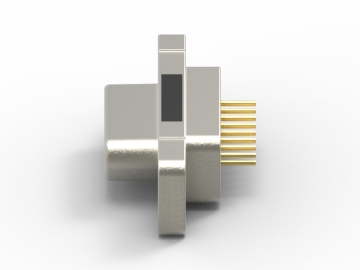

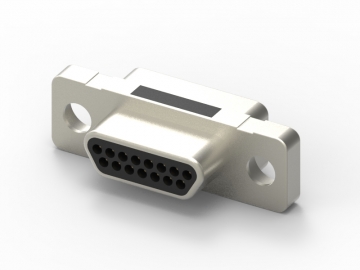

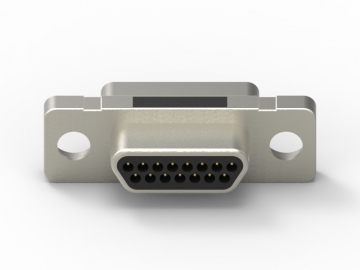

Mirco DSUB Female 15Pin

產品編號
P507PAN-MDSFF15S11
M Series Connectors offer a rugged and reliable design as well as easy customization. The M-Series interconnects are available in I/O, straight, right-angle, and SMT board-mount models. 1, 2, 3, and 4 row options are available with 9-128 contacts. The M Series connectors are qualified to MIL requirements. Typical applications include navigation, radar, communications, avionics, medical devices, engine control applications, and more.






Product Datasheet
Series Mirco "D“ Metal Shell
Arrangement 9~25Pin
Gender Scoket
Contact Material Gold Plated Copper Alloy
Contact Type Crimp
Contact Resistance 8Milliohms Max
Current Rating 3A max
SaltSpray 48 Hours
