Waterproof Circular > C SIZE

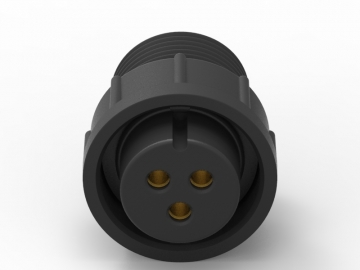

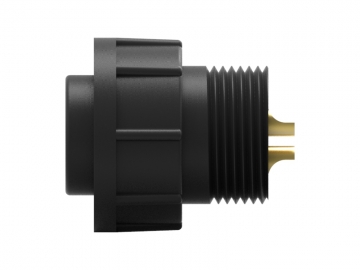

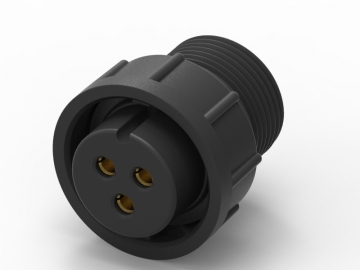

C Size Female 3Pin (20A) Molded Type

產品編號
PH07ZSE-CCCFF03L61
High performance, circular connectors

1. A simple, yet highly reliable design for compact, high density applications
2. Extremely easy mating/unmating operations

* IP67 products are also available as an option.






No. Specifications Standard Value
Identifications Mini(A),Stand(B),Middle(C),Large(D),Macro(E)-Size
Description Penal Mount, Molded With Cable and Field Installable
Current Rating / Pin Arrangements Mini(A)-2A:4~6, 5A:2~3
Stand(B)-2A:10~12, 5A:2~8, 10A:2~4,
5A+2A:8, 10A+5A:6
Middle(C)-2A:18, 5A:7-14, 10A:4~6, 20A:3,
5A+2A:12~14, 10A+5A:6
Large(D)-2A:20~22, 5A:18, 20A:2~7
Macro(E)-5A:31
Material Contacts: Copper Alloy, Gold Plated
Connector Body: Nylon+GF, UL Recognized
Temperature Range Cable: -20℃~ + 80
Connector Body: -40℃~ + 105
Waterproof Rating IP66,IP67,IP68(Per IEC 60529)
Contact Resistance 10mΩ
Insulation Resistance 100mΩ at DC 150V
Durability 1000Plug / Unplug Cycles Minimun
Breakdown Vlotage AC 1000V / 1Minute, 500V / 1Minute (1.5~5)
Corrosion 48 Hours Salt Spray Contact
