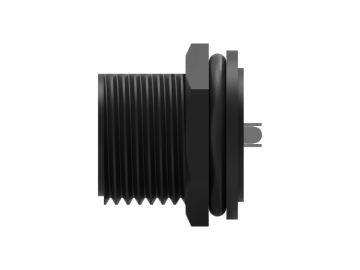

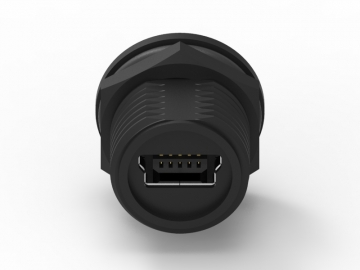

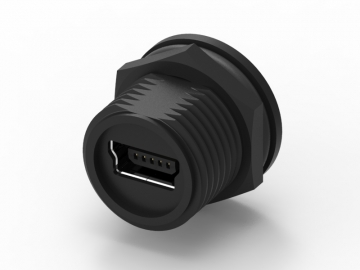

Waterproof MINI USB Panel

產品編號
P507PAN-MUSMFXX02
Identifications
USB A Type (2.0, 3.0)

USB B Type

Mini USB Type

Mirco USB Type






No. Specifications Standard Value
Identifications
USB A Type (2.0, 3.0)

USB B Type

Mini USB Type

Mirco USB Type

Description Penal Mount, Molded With Cable and Field Installable
Current Rating USB : 1.5A
​Mini USB : 1A
Material Contacts: Copper Alloy, Gold Plated
Connector Body: PBT UL94V-0
Temperature Range Cable: -20℃~ + 80
Connector Body: -40℃~ + 105
Waterproof Rating IP66,IP67,IP68(Per IEC 60529)
Contact Resistance ≦ 30mΩ MAX
Insulation Resistance ≦ 100mΩ MIN
Speed 480Mbps
Breakdown Vlotage ≧ AC 500 V / 1Minute
