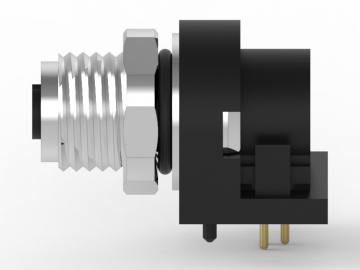

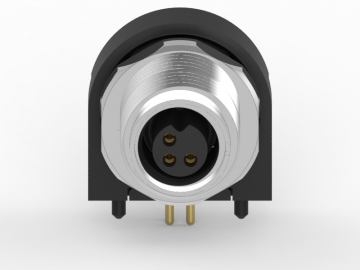

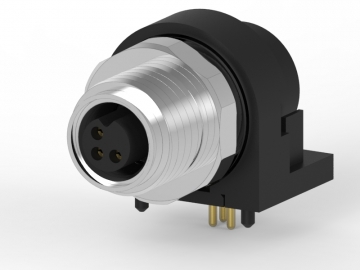

M5 Female 3Pin Panel Angled

For fast and reliable data communication in industrial and infrastructure applications, we offer shielded circular connectors in sizes M5 and M12 for all common fieldbuses and networks.

  • Data up to 10 Gbps
  • Coding for all common networks and fieldbus systems
  • Components according to CAT6A
  • 360° shielded connectors



No. Specifications Standard Value
Identifications M5
M8 A,B Code
M12 A,B,D,X Code For Signal
M12 S,T,L,K,M Code For Power
Description Penal Mount, Molded With Cable and Field Installable
Current Ration / Pin Arrangements M5-1A : 3,4Pin

M8-4A : 3,4Pin
M8-3A : 5Pin (B Code)
M8-2A : 6Pin
M8-1A : 8Pin

M12(A) 4A : 3~5Pin, 2A : 8Pin, 1.5A : 12~17Pin
M12(B) 4A : 5Pin
M12(D) 4A : 4Pin
M12(S) 12A : 3~4Pin (AC 630V)
M12(T) 12A : 4Pin (DC 63V)
M12(K) 12A : 5Pin (AC 630V)
M12(L) 12A : 5Pin (DC 63V)
M12(M) 8A : 8Pin (AC 630V)

M16 3~14Pin

7/8" 3~5Pin
M23 6~19Pin
Material Contacts: Copper Alloy, Gold Plated
Connector Body: Nylon+GF or PU, UL Recognized
Shield: Zinc Alloy or Copper Alloy,
           Nickel Plated
Temperature Range Cable: -25℃~ + 90℃ (PU)
             -20℃~ + 80℃ (PVC)
Connector Body: -40℃~ + 105
Waterproof Rating IP66,IP67,IP68
Contact Resistance ≦100mΩ
Insulation Resistance ≦100mΩ at DC ≦ 150V
Breakdown Vlotage ≧AC 500V / 1Minute
