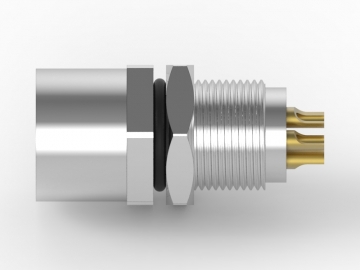

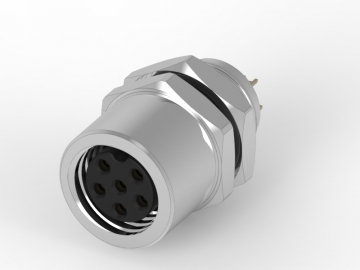

M8 Female Panel 6Pin

產品編號
P507PAN-M08FF06SH1

For fast and reliable data communication in industrial and infrastructure applications, we offer shielded circular connectors in sizes M5 and M12 for all common fieldbuses and networks.

  • Data up to 10 Gbps
  • Coding for all common networks and fieldbus systems
  • Components according to CAT6A
  • 360° shielded connectors






No. Specifications Standard Value
Identifications M5
M8 A,B Code
M12 A,B,D,X Code For Signal
M12 S,T,L,K,M Code For Power
7/8"
Description Penal Mount, Molded With Cable and Field Installable
Current Ration / Pin Arrangements M5-1A : 3,4Pin

M8-4A : 3,4Pin
M8-3A : 5Pin (B Code)
M8-2A : 6Pin
M8-1A : 8Pin

M12(A) 4A : 3~5Pin, 2A : 8Pin, 1.5A : 12~17Pin
M12(B) 4A : 5Pin
M12(D) 4A : 4Pin
M12(S) 12A : 3~4Pin (AC 630V)
M12(T) 12A : 4Pin (DC 63V)
M12(K) 12A : 5Pin (AC 630V)
M12(L) 12A : 5Pin (DC 63V)
M12(M) 8A : 8Pin (AC 630V)

M16 3~14Pin

7/8" 3~5Pin

M23 6~19Pin
Material Contacts: Copper Alloy, Gold Plated
Connector Body: Nylon+GF or PU, UL Recognized
Shield: Zinc Alloy or Copper Alloy,
           Nickel Plated
Temperature Range Cable: -25℃~ + 90℃ (PU)
             -20℃~ + 80℃ (PVC)
Connector Body: -40℃~ + 105
Waterproof Rating IP66,IP67,IP68
Contact Resistance ≦100mΩ
Insulation Resistance ≦100mΩ at DC ≦ 150V
Breakdown Vlotage ≧AC 500V / 1Minute
